ANETNNA GAIN IMPROVE PERFORMANCE

             ANTENNA GAIN FOR EXTERNAL ACCESS POINT 1562E and 1572EAC

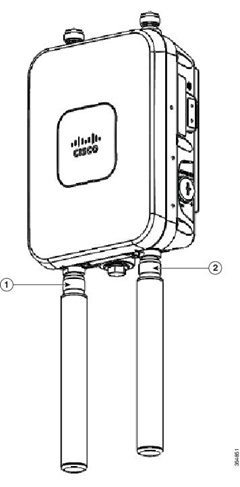

ABOVE TWO PORTs are 5Ghz Single mode

BELOW TWO PORTs are Dual mode and single mode for 2.4Ghz

from Access point  CLI we are unable to find the Antenna model , Cisco Prime can provide Antenna model information.

ANTENNA GAIN = 2 x 0.5 dBi

ACCESS POINT MODEL FOCUS :

AIR-AP1562E-E-K9

AIR-AP1572EAC-E-K9

DAFAULT PARAMETERS on AP’s:

 ACCESSPOINT1#sh controllers dot11Radio 0 |i Gain

Configured Antenna Gain(dBi): 4

Legal Antenna Gain in use(dBi): 4

                Antenna Gain:   1. 4dBi  2. 4dBi

ACCESSPOINT1#sh controllers dot11Radio 1 |i Gain

Configured Antenna Gain(dBi): 4

Legal Antenna Gain in use(dBi): 5

                Antenna Gain:   1. 5dBi  2. 5dBi



EXAMPLE: CORRECTED SETTING BASED ON ANTENNA GAIN



ACCESSPOINT2#sh controllers dot11Radio 0 | i Gain

Configured Antenna Gain(dBi): 5

Legal Antenna Gain in use(dBi): 5

                Antenna Gain:   1. 5dBi  2. 5dBi



ACCESSPOINT2#sh controllers dot11Radio 1 | i Gain    5GHz

Configured Antenna Gain(dBi): 8

Legal Antenna Gain in use(dBi): 8

                Antenna Gain:   1. 8dBi  2. 8dBi
